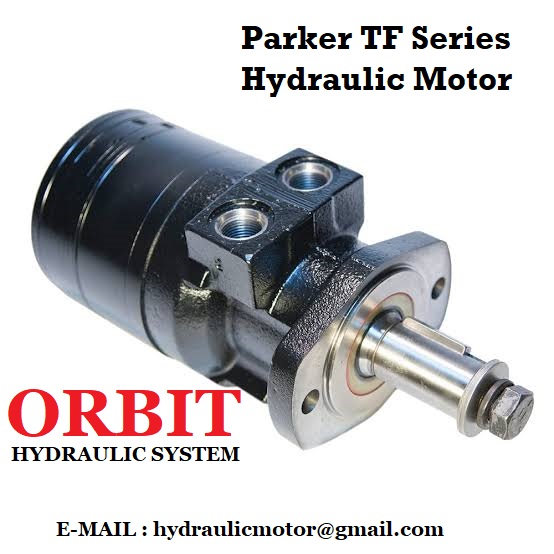

Parker TF Series Hydraulic Motor TF0080 | TF0100 | TF0130 | TF0140 | TF0170 | TF0195 | TF0240 | TF0280| TF0360 | TF0365 (clutch) | TF0405 | TF0475 Motor in India
The Parker TF Series Torqmotor™ is a durable low speed, high torque orbital motor. It is ideal for medium duty applications and has superior side load capacity.
With its 31.75 mm nominal shaft size, the Parker TF motor can handle intermittent pressures to 280 bar, and torques to 920 Nm. It can carry maximum dynamic side loads to 6672 N at the key.
The Parker TF motor is available in 12 displacements from 81 cc/rev to 477 cc/rev: TF0080 | TF0100 | TF0130 | TF0140 | TF0170 | TF0195 | TF0240 | TF0280| TF0360 | TF0365 (clutch) | TF0405 | TF0475
Features and benefits include:
- Available in flange or wheel mounts
- Flange mounts carry up to 17792 N side load
- Wheel mounts carry up to 26688 N side load
- Robust construction for longer life
- Continuous oil flow across internal splines for longer life
- Smooth, extra low speed operation
- High pressure shaft seal as standard
- Innovative design eliminates the need for a case drain
Contact us for further technical details and configuration options.
